5.0”Touch Display Module 720*1280 Portrait MIPI interface G+G CTP touch Brightness 540cd/m² Customi Cover Glass

This 5.0 inch touch display module features a portrait design, tailor-made for handheld terminals, industrial control, and other vertical display applications.

The module integrates a 5.0 inch IPS TFT display with 720(RGB)×1280 WXGA resolution and MIPI interface. The active area of the display is 62.10 (W) × 110.40 (H) mm, while the TFT module outline is 64.90 × 118.00 × 1.64 mm. With its narrow bezel and ultra-slim thickness, it significantly improves device space utilization, balancing aesthetics with practicality.

The 5.0 inch customized capacitive touch panel of G+G structure, combined with SCA optical bonding technology, delivers high-definition display, responsive touch, and an ultra-slim, compact profile. The customizable cover glass meets diverse industry requirements, offering a cost-effective and highly reliable touch display solution..

Product Specification:

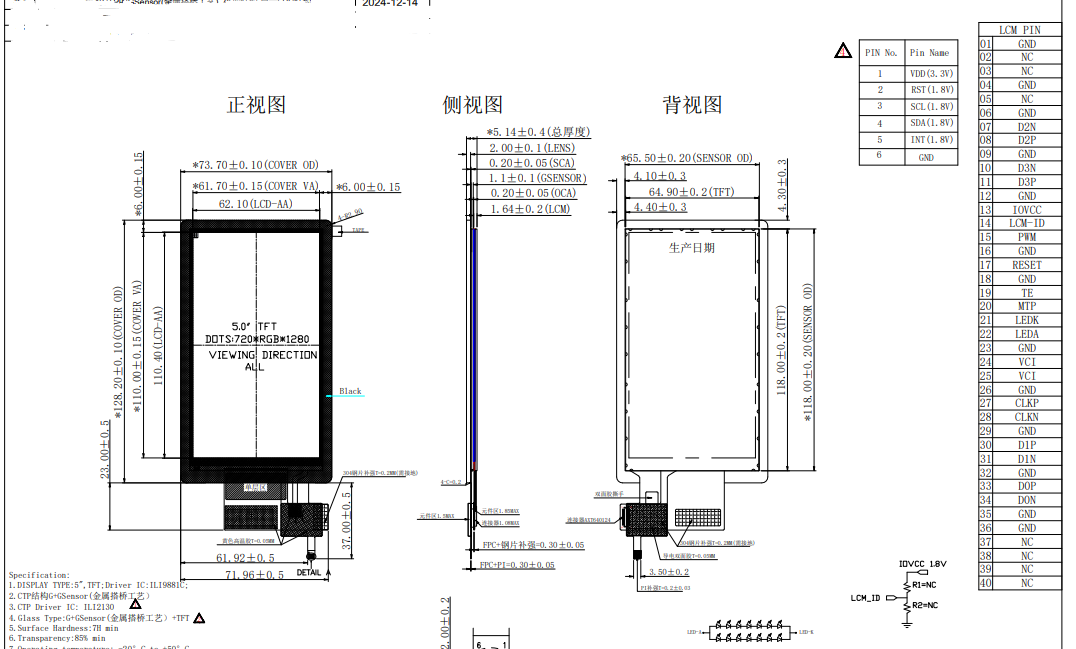

Product Drawing：

Product Features:

High-Definition Portrait Display

• 5.0 inch portrait design with IPS full-viewing angles and 720×1280 HD resolution. Delivers sharp text edges and precise image details.

Narrow Bezel & Ultra-Slim Design

• Display thickness is only 1.64mm, making the overall module lightweight and compact — ideal for space-constrained applications such as handheld terminals and compact industrial devices.

High Brightness for Outdoor Use

• With surface brightness reaches 540 cd/m², the 5.0 inch touch display module offers vivid colors and strong contrast, remaining clearly visible even under intense sunlight.

MIPI Interface

• Features fast signal transmission and strong anti-interference capability. Compatible with mainstream application processor platforms for easy integration and driver debugging.

Durable Touch Performance

• The 5.0 inch touch screen adopts a G+G (Glass-Glass) structure with metal bridge technology, enabling fine line width control and excellent pattern concealment, greatly enhancing touch stability.

Customizable Cover Glass

• Supports personalized customization with a 2.0mm thick cover glass and surface hardness of ≥7H, far exceeding industry standards. Effectively resists daily scratches and impacts, ensuring long-lasting durability.

Optical Bonding

• SCA optical bonding between 5.0 inch 720*1280 TFT display and customzied CTP ensures no air bubbles or water ripples, improving light transmittance and impact resistance for reliable operation in harsh environments.

Applications:

With its high-definition display, portrait orientation, ultra-slim narrow bezel, reliable touch performance, and customizable cover glass, this 5.0 inch 720×1280 touch display module is widely used across various industries, perfectly suited for vertical display scenarios:

Industrial Handheld Terminals (PDA, barcode scanners)

Medical Devices (patient monitors, portable diagnostic instruments)

Smart Home Controllers (wall switches, control panels)

Portable Consumer Electronics (video intercoms, dedicated media players)
