Größe :
2.0"Teile-Nr. :
FT-028103-B-N-AAuflösung :
376*960Blickwinkel :
FreeSchnittstelle :
MIPITouch-Screen :
/Treiber-IC :
ST7701NTemperatur :
-20℃-70℃Helligkeit :
550 cd/㎡Modulumriss (mm) :
28.81 * 76.00 * 2.08AA-Größe (mm) :

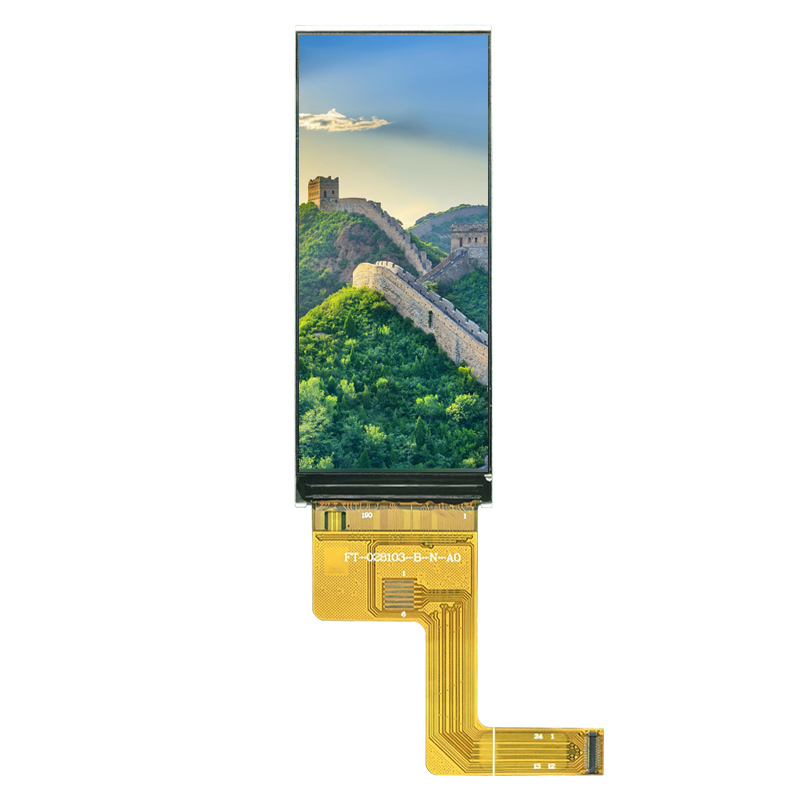

26.51 * 67.68The model#FT-028103, this 2.9 inch TFT display features a resolution of 376×960 pixels and portrait mode design, making it well-suited for vertical display scenarios such as handheld devices. The LCD Active Area (AA) size is 26.51 × 67.68 mm(W×H), and module outline dimension is 28.81 × 76.00 × 2.08mm (L×W×H). The 2.9 inch display module utilizes IPS wide-viewing angle technology, paired with an ultra-narrow bezel and an ultra-thin body, balancing display performance with structural compactness to help terminal devices achieve both lightweight design and high-definition display upgrades.

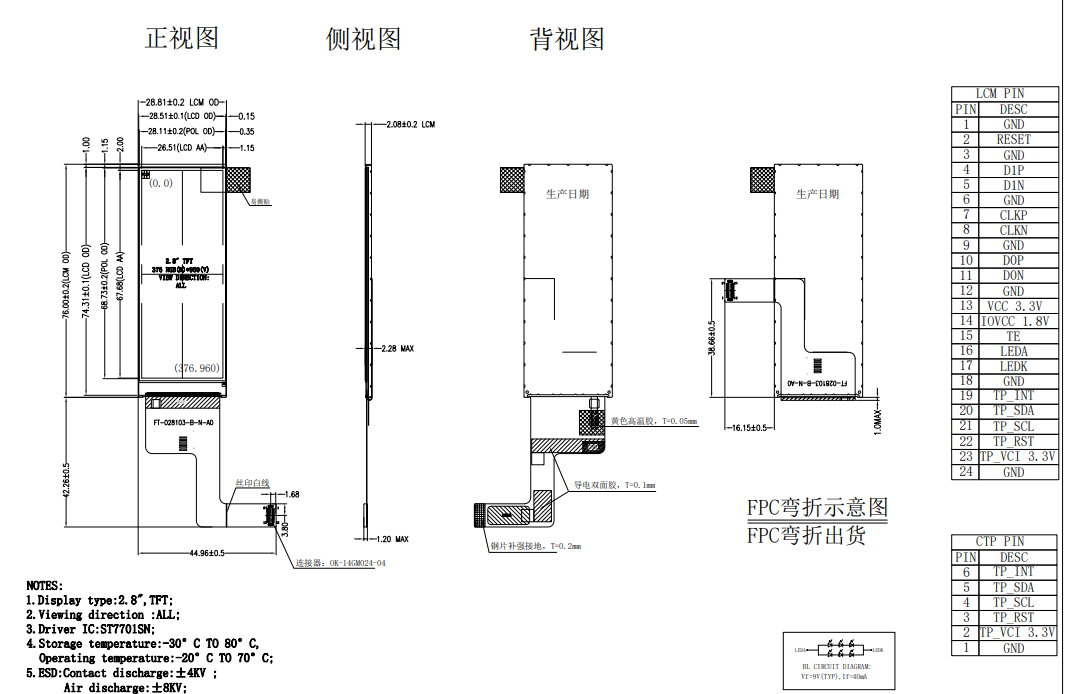

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | FT-028103-B-N-A |
| 2 | LCD Size | 2.9 inch TFT LCD Display |
| 3 | Resolution (Pixels) | 376(RGB)×960 |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 26.51 × 67.68 mm |
| 6 | Module Dimension | 28.81 × 76.00 × 2.08mm |
| 7 | Viewing Direction | ALL |
| 8 | Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| 9 | Contrast | 1000:1 (Typ.) |
| 10 | Luminance | 550 cd/㎡ |
| 11 | Backlight | 6 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 14 | Touch Screen | Without touch screen |
Features:
Display High-resolution:
2.9 inch TFT LCD Display with a resolution of 376×960, delivering clear images and high-quality display effects.
Unique Vertical Screen:
The portrait mode screen fit well with holding and operating habits, specifically tailored for portable vertical devices.
IPS Full Viewing Angle:
170° ultra-wide viewing angle without color distortion, 1000:1 contrast ratio, and distinct light and dark layers ensure clear readability in complex lighting environments.
Slim and Compact:
The ultra-narrow bezel design maximizes the AA visible area, while the 2.08 mm module thickness saves internal space within devices, meeting the stringent space utilization requirements of portable devices.
Stable Driver IC:
Equipped with the ST7701N driver and supporting the MIPI-DSI interface, it ensures stable signal transmission, strong anti-interference capabilities, compatibility with mainstream main control solutions, and reduced development and debugging difficulty.
Touchscreen Availability:
This 2.9 inch TFT display module reserves a capacitive touchscreen interface, allowing flexible expansion to add CTP touch functionality as needed by the project, enabling one-click integration of display and touch capabilities.
Applications:
This 2.9 inch 376×960 TFT LCD display, with its unique portrait mode design, super narrow bezel design, and outstanding display performance, is the preferred display solution for industrial control, medical portable devices, and intelligent handheld terminals, enhancing both the aesthetics and practicality of products.
🔹Industrial Sector: Industrial HMI (Human-Machine Interface), industrial control panels, equipment status displays, and portable inspection devices.
🔹Medical Sector: Portable medical terminals, small detection devices, and health monitoring instruments.
🔹Smart Devices: Smart home central controls, handheld portable devices, outdoor smart terminals, and small instrument displays.
