Größe :
4.3"Teile-Nr. :
FT-04377-B-C-A0Auflösung :
800*480*Blickwinkel :
FreeSchnittstelle :
RGBTouch-Screen :
CTPTreiber-IC :
ST7265Temperatur :
-20℃-70℃Helligkeit :
500 cd/㎡Modulumriss (mm) :
119.0*77.0*5.35AA-Größe (mm) :

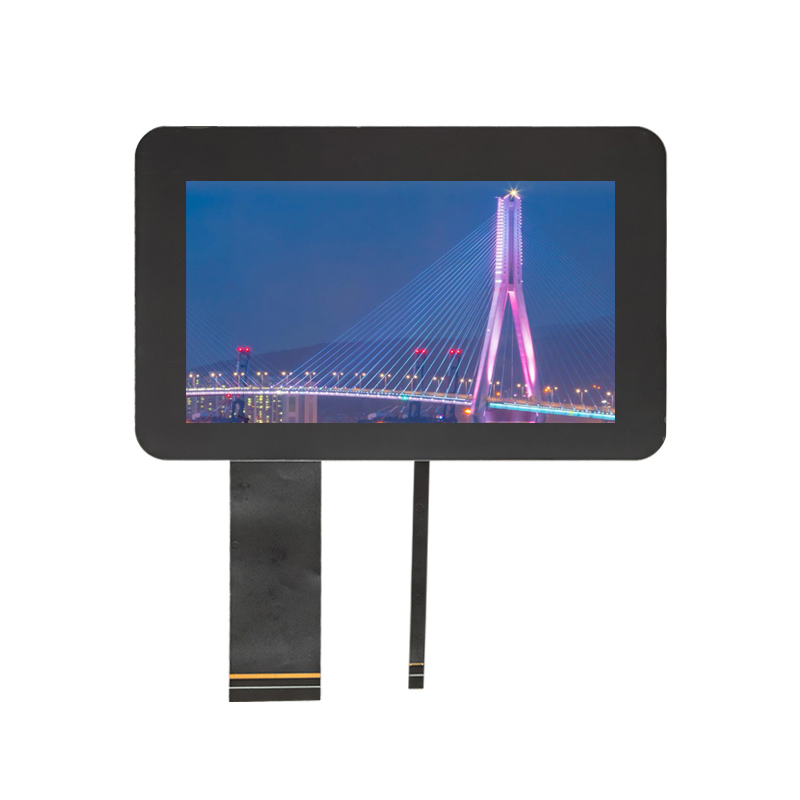

95.04*53.86The model#FT-04377，is 4.3 inch touch display module. The 4.3 inch TFT LCD display features 800×480 resolution in 16:9 aspect ratio. Its active area is 95.04 × 53.86 mm (W × H), and the module outline dimension is 105.50 × 67.11 × 2.90 mm. Built with ST7265 driver IC, the 4.3 inch display module supports Parallel RGB (1 channel, 8-bit) interface, compatible with most embedded mainboards, making it a preferred interface option for 4.3-inch display screens.
The 4.3 inch CTP capacitive touch panel is of G+G structure with OCA optical bonding, delivering outstanding performance in dustproof, scratch resistance and high contrast..

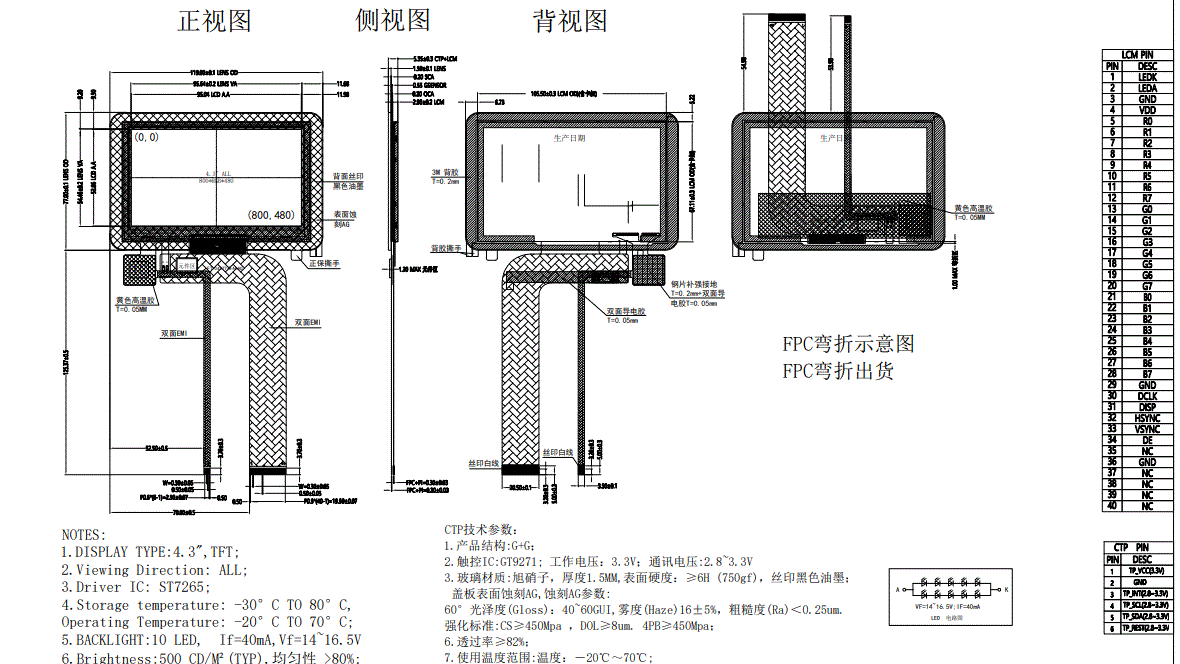

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | TF-04377-B-C-A0 |
| 2 | LCD Size | 4.3 inch Touch Display Module |
| 3 | Resolution (Pixels) | 400(RGB)×270, QVGA |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 95.04×53.86mm |
| 6 | Display Dimension(w/o CTP) | 105.50×67.11 x2.90mm |
| 7 | Module Dimension | 119.0×77.0×5.35mm |
| 8 | Viewing Direction | ALL |
| 9 | Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| 10 | Contrast | 1000:1 (Typ.) |
| 11 | Luminance | 500 cd/㎡ |
| 12 | Backlight | 10 CHIP LED White， |
| 13 | Surface Treatment | Anti-Glare |
| 14 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 15 | Touch Screen | With CTP touch |
Features:
High Definition Display
Mature Driving Solution
Touch Panel Construction
AG Anti-Glare Cover Glass
Chemical etched AG anti-glare treatment on cover glass (different from spray-type AG):
OCA Optical Bonding between LCD and touch panel:
Dust prevention: No air gap between layers, fundamentally dustproof and moistureproof:
Applications:
This 4.3 inch 800*480 touch display module, is highly versatile for both consumer and industrial use. It serves as high-definition touch display solution for industrial control, smart devices, vehicle terminals, smart home and portable instruments:
- Industrial control: HMI touch panels, PLC terminals, automation equipment displays
- Smart home & appliances: Smart home control panels, commercial appliance touchscreens, kitchen smart devices, HVAC control displays
- Vehicle & security: Auxiliary vehicle displays, rearview camera terminals, video intercom access control, indoor security monitors
- Portable instruments: Handheld medical detectors, industrial testers, IoT terminals, portable industrial controllers
About Shengfeng:
We Shengfeng are a professional manufacturer of LCD/TFT display modules, focusing on R&D, production and customization of industrial-grade display solution with complete production lines and quality control systems.
We support sample customization, small trial orders and mass production. Customization options include interface modification, backlight brightness adjustment, touch firmware adaptation and mechanical structure fine-tuning. We provide complete datasheets, wiring diagrams and development references, with full technical support to accelerate your project launch.
Direct factory supply without middlemen, competitive pricing, short lead time and reliable after-sales service.
If you are interested in this 4.3 inch displays solutions, please feel free to contact us. We are dedicated to serving you and look forward to mutually beneficial cooperation!
