3.0 inch Touch Display 240*400 Bar Type IPS TFT LCD MIPI interface Customized Cover Glass

the Model# FT-03011-B-C-A, is a 3.0 inch touch display module, features a TFT LCD resolution of 240×400 with a 3:5 aspect ratio in a Bart-type portrait mode. The LCD Active Area (AA) size is 39.24×65.4 mm(W×H). Utilizing IPS TFT LCD technology, it offers a 170° wide viewing angle, driven by the ST7793 IC with MIPI interface support. Paired with a 3.0 inch capacitive touchscreen featuring a G+FF (glass+film+film) structure, and a custom-designed irregular-shaped cover glass with 2.5D glass and AG/AF surface treatments.

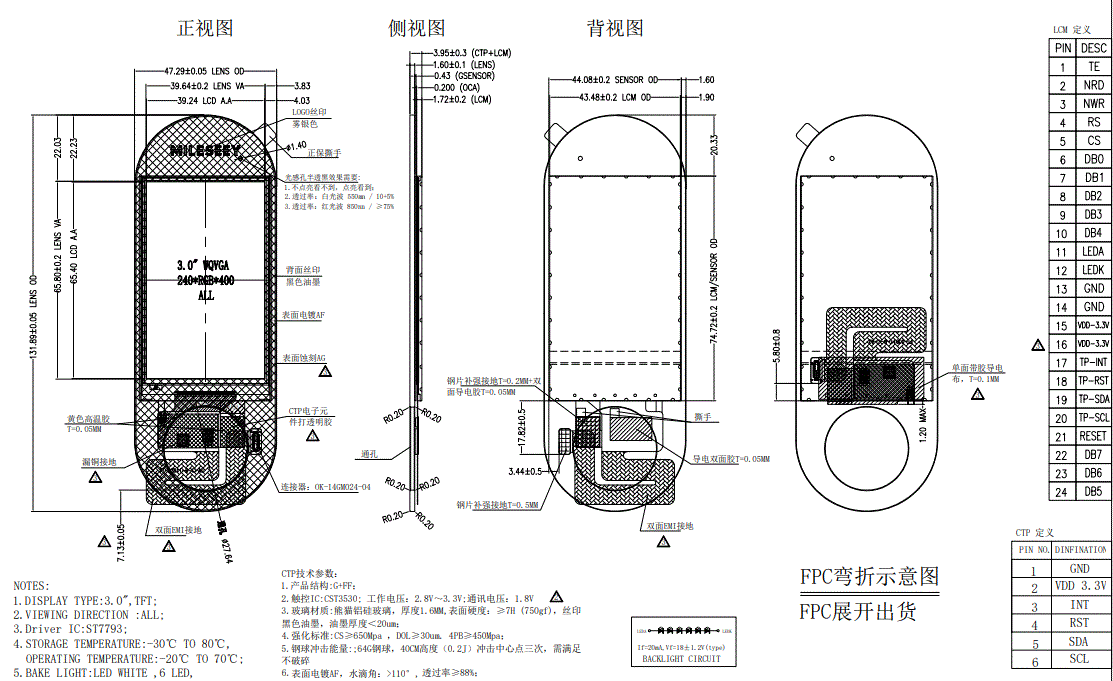

Product Drawing：

Product Specification:

Product Feature:

Superior LCD Display Performance

• Portrait Design: 3.0 inch TFT LCD 240×400 resolution, 3:5 aspect ratio, bar-type portrait mode.
• IPS Technology: 170° wide viewing angles with no color distortion, ideal for multi-angle viewing scenarios.
• Contrast Ratio: 1000:1 for precise color reproduction and excellent sunlight visibility.
• High Brightness: 500 cd/m² surface brightness ensures outstanding outdoor readability.
• Driver IC:  ST7793 with MIPI interface support for fast data transmission and low power consumption.

High-Performance Touch Experience

• Capacitive Touch Structure: G+FF dual-layer design for high sensitivity and strong anti-interference capabilities.
• Touch IC CST3530: Response time <10ms, linearity error <1%, stable performance in complex electromagnetic environments.
• Custom Cover Glass: Oval irregular-shaped cover with precision cutouts and logo silk-screening for a unique product appearance.
• 1.6mm Tempered Glass: Surface hardness ≥7H (750gf) with AG and AF surface treatments.
• Optical Bonding:  OCA bonding between TFT and CTP enhances a "black-one" effect while improving shock resistance and reliability.

Cover Glass Customization – Empower Your Product:

Shengfeng offers cover glass customization services to help you create a truly unique product appearance.

√ Shape Customization: Tailored to your design requirements, including circular, oval, chamfered, polygonal, or any irregular shape.

√Surface Printing Customization: Silk-screen printing of customer logos, brand identifiers, or exclusive patterns with customizable ink colors.

√Glass Process Upgrades: Available in 2D, 2.5D, or even 3D curved-edge glass for enhanced tactile feel and premium aesthetics.

√Surface Treatment Options:

• AG (Anti-Glare): Reduces ambient light reflections for clearer screen content.
• AR (Anti-Reflective): Increases light transmission and reduces glare, improving display contrast.
• AF (Anti-Fingerprint): Oleophobic and hydrophobic coating for easy cleaning and a pristine screen finish.

Applications:

Smart Wearables: Smart bands, health monitoring devices, portable medical terminals.

Industrial Control: HMI interfaces, handheld data collectors, automation equipment displays.

Smart Home: Smart door locks, temperature control panels, home appliance control terminals.

Consumer Electronics: POS terminals, e-readers, portable gaming consoles.

Contact Us Now for a Customized Solution!

If you're seeking a high-performance, reliable 3.0 inch touch display module with unique customization options, reach out to us today!
