PRODUKTE
Größe :
3.01"Teile-Nr. :
FT-03015-B-N-AAuflösung :
170*560Blickwinkel :
FreeSchnittstelle :
RGBTouch-Screen :
/Treiber-IC :
SAXS15231BTemperatur :
-20℃-70℃Helligkeit :
1000 cd/㎡Modulumriss (mm) :
24.63*78.41*1.50AA-Größe (mm) :
22.134*72.912The model#FT-03015-B-N-A, is a 3.01 inch bar-type TFT LCD display featuring a resolution of 170×560 with an aspect ratio of less than 1:3., in portrait mode. Its LCD Active Area (AA) size is 22.134 × 72.912 mm(W×H), and module outline dimension is 24.63 × 78.41 × 1.50mm. Adopting an ultra-narrow bezel design combined with an ultra-slim thickness of just 1.50 mm, it perfectly balances practicality and aesthetics. With 85/85/85/85 full viewing angle, 800:1 contrast ratio and surface brightness of 520 cd/m², the 3.01 inch IPS TFT LCD delivers exceptional clarity and vivid color reproduction.
It is built with the SAXS15231B driver IC, this 3.01 inch TFT LCD module supports RGB interface and features a 30-PIN FPC connector, which surface is treated with EMI shielding, ensuring stable performance and strong anti-interference capability. It is widely used in bar display applications such as automotive instrumentation, industrial control, wearables, medical devices, and IoT terminals.

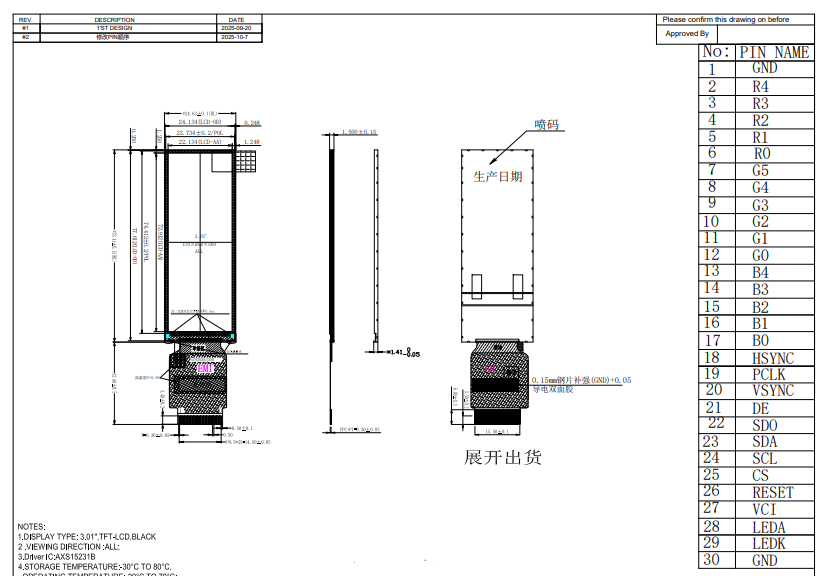

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | FT-03015-B-N-A |
| 2 | LCD Size | 3.01 inch TFT LCD Display |
| 3 | Resolution (Pixels) | 170(RGB)×560 |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 22.134 × 72.912 mm |
| 6 | Module Dimension | 24.63 × 78.41 × 1.50 mm |
| 7 | Viewing Direction | ALL |
| 8 | Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| 9 | Contrast | 800:1 (Typ.) |
| 10 | Luminance | 520 cd/㎡ |
| 11 | Backlight | 6 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 14 | Touch Screen | Without touch screen |
Features:
Bar-type From Design:
The 3.01 inch prtrait LCD features an aspect ratio ＜1:3. Its sleek, elongated design ensures a precise fit for the structural requirements of bar-type devices such as automotive consoles and industrial controllers, offering superior scenario adaptability.
Ultra-Narrow Bezel & Slim Module Thickness:
The narrow-bezel design maximizes display AA size, eliminating wasted black space for an immersive visual experience. With an ultra-thin thickness of 1.50 mm, the module saves valuable internal space, making it ideal for miniaturized and precision bar-type equipment.
Full Viewing Angle Display
The 3.01 inch IPS TFT LCD is with 85/85/85/85 full viewing angle, ensuring no color shift from any perspective. And combined with a 170×560 high resolution and an 800:1 high contrast ratio, it renders sharp image details and rich, lifelike colors for a comfortable viewing experience.
High Brightness & Clarity
With surface brightness of 520 cd/m², the 3.01" bar-type TFT LCD display excels in both indoor and outdoor environments. It remains soft on the eyes in low light while maintaining excellent visibility under strong sunlight. This makes it highly practical for applications in automotive and outdoor industrial equipment.
High-Performance Interface
Integrated with the SAXS15231B driver IC, the 3.01" bar-type TFT LCD module operates stably with low power consumption. The high-speed RGB interface ensures smooth data transmission and is compatible with most main control boards, simplifying debugging and reducing installation and maintenance costs.
EMI-Shielded FPC
The 30-PIN FPC is with EMI shielding design. This effectively blocks external electromagnetic interference, making the module suitable for harsh working environments such as industrial settings and automotive applications, thus reducing display abnormalities and enhancing overall reliability.
Applications:
With its elongated shape, ultra-narrow bezel, slim profile, full viewing angle, high stability, and anti-interference capabilities, this 3.01 inch bar-type TFT LCD display is designed to withstand complex industrial and automotive environments. It is widely applied across multiple industries:
🔹 Automotive: Instrument clusters, center console bar screens, vehicle warning displays, navigation auxiliary screens.
🔹 Industrial: Industrial control panels, bar controllers, small testing equipment, production line data displays.
🔹 Smart Devices: Wearable devices, IoT terminal displays, smart home control panels.
🔹 Medical Instruments: Small medical monitors, portable medical device displays.
🔹 Others: Bar advertising screens, small terminal displays, customized bar-type display equipment.
