PRODUKTE
Part No.: FT-06204
TFT Type: 6.2 inch TFT LCD Display
Resolution: 1024*600 dots
Viewing Direction: ALL
Interface: RGB 8bit
Driver IC: JD9168S
Luminance: 1100 cd/m²
Metal Frame：Without Frame
Touch Screen: Without Touch
Art.-Nr :

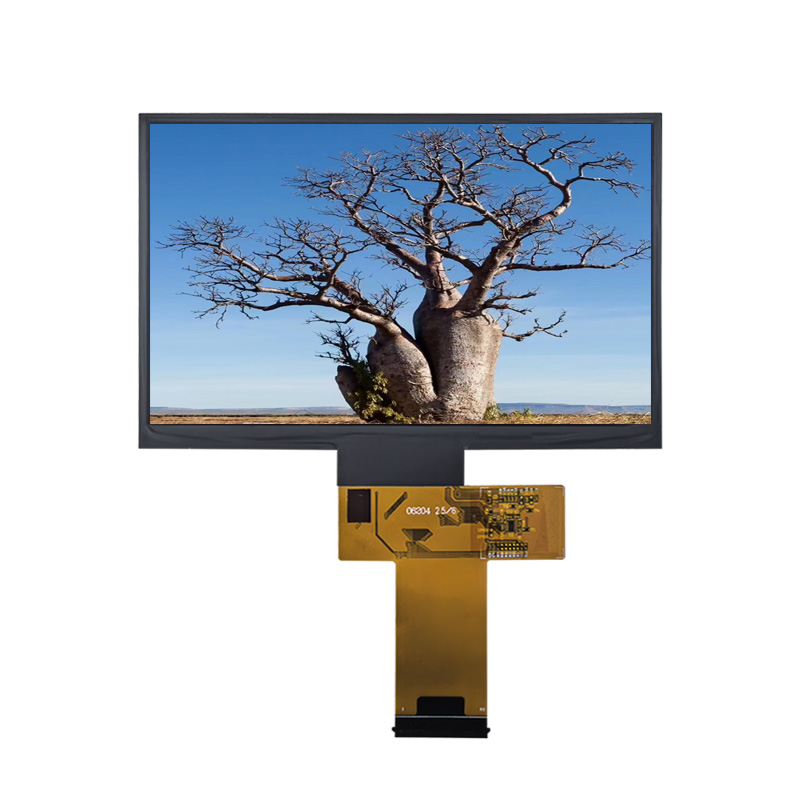

FT-06204The model #FT-06204, is a 6.2 inch TFT Display module with a resolution of 1024*600, classical aspect ratio of 16:9 and landscape mode. This 6.2 inch display features 16.7M high-definition, IPS wide viewing angles, RGB interface, wide temperature range of -30~80℃, and high brightness of 1100cd/m² for visibility in sunlight. The AA(Active Area) size of this display is 137.47 x 77.23mm and the module outline dimension is 144.37 x 88.10 x 4.93mm. The 6.2 inch IPS TFT module is built with driver IC JD9168S, supporting RGB 8bit interface and connected by 50pin FPC.

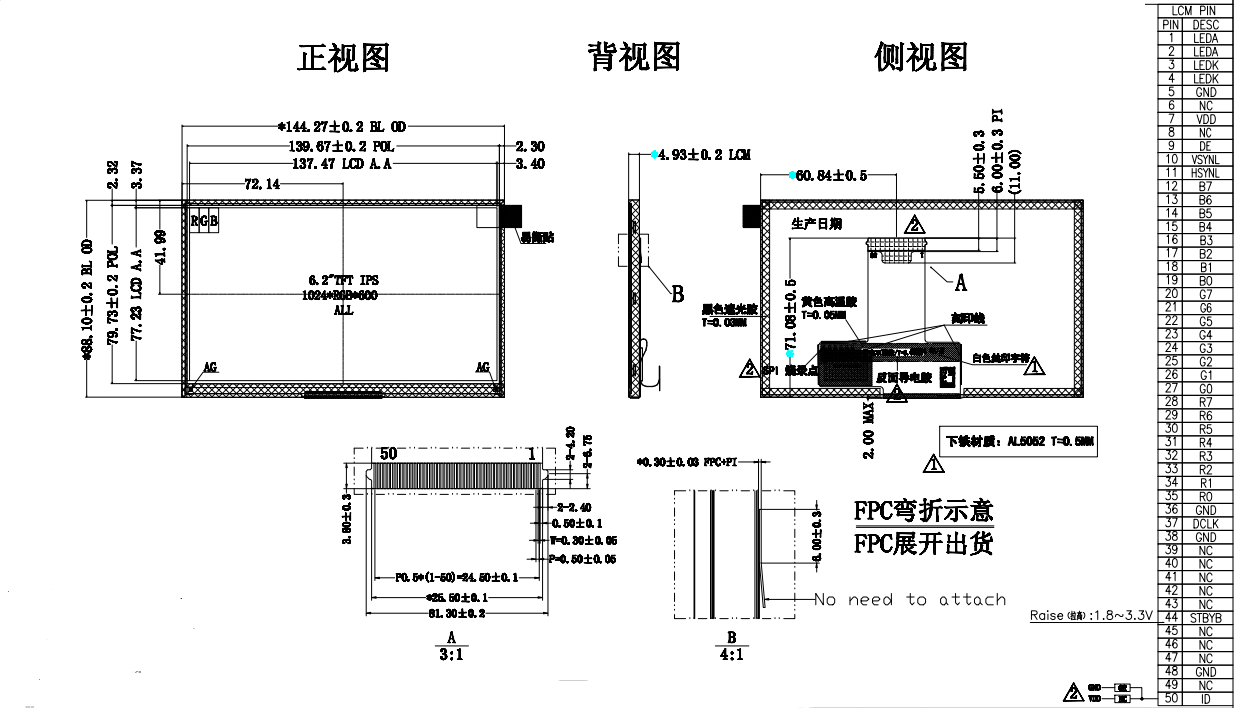

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | TF-06204 |
| 2 | LCD Size | 6.2 inch IPS TFT LCD/6.2 inch TFT LCD Display |
| 3 | Resolution (Pixels) | 1024(RGB)×600, |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 137.47 x 77.23 mm |
| 6 | TFT Module Dimension | 144.27 × 88.10 × 4.94 mm |
| 7 | Viewing Direction | ALL |
| 8 | Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| 9 | Contrast | 1000:1 (Typ.) |
| 10 | Luminance | 1100 cd/㎡ |
| 11 | Backlight | 18 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 14 | Touch Screen | Without touch |
Features:
✅ High Rosolution Display:
The 6.2 inch TFT LCD display with a 1024*600 high resolution and 16.7M high-definition offers a clearer visual effect, meeting the high demands for image quality in professional fields.
✅Wide Viewing Angles:
Utilizing IPS technology, the 170° ultra-wide viewing angles enable users to enjoy a perfect visual experience from different perspectives, making it suitable for multi-view industrial scenarios.
✅High Brightness:
With a module surface brightness of 1100nits, the 6.2 inch TFT module is resistant to direct sunlight and remains clearly visible in outdoor/strong light environments (an ideal choice for car navigation displays and outdoor equipment displays).
✅Automotive Operating Temp.:
The ultra-wide operating temperature range of -30℃ to 80℃ meets the harsh environmental requirements of automotive, industrial control, and outdoor equipment.
✅Driver IC & Interface:
Equipped with a high-performance JD9168S drive IC, the 6.2 inch IPS TFT module supports an RGB interface, providing stable and reliable data transmission and display drive.
✅AvailableTouch Options:
Users can add RTP or CTP according to project requirements to enhance human-computer interaction and improve the customer experience.
Applications:
The model #FT-06204, this 6.2 inch TFT LCD Display, with the features of 1024*600 resolution, IPS full viewing angles, extremely-wide Operating Temperature of -30~80℃, and high brightness of 1100cd/m², offers excellent visibility in sunlight. It is highly recommended for industrial automation control systems, medical, automotive, smart home, and some high-end consumer electronics fields.
Car navigation systems, dashboard displays, and rear-seat entertainment systems ensure driving safety through wide-temperature certification and shock-resistant design.
HMI (Human-Machine Interface) and PLC control panels maintain operational visibility in brightly lit workshop environments with high-brightness screens.
Portable medical devices, outdoor POS machines, and security monitoring screens meet all-weather usage requirements with a brightness of 1100nits.
Smart home central controls and high-end IoT devices benefit from the ultra-thin design, which enhances product aesthetics and optimizes space utilization.
