Graphic128x64 LCD Module FSTN Positive COG Module ST7565 Driver SPI/Parallel interface

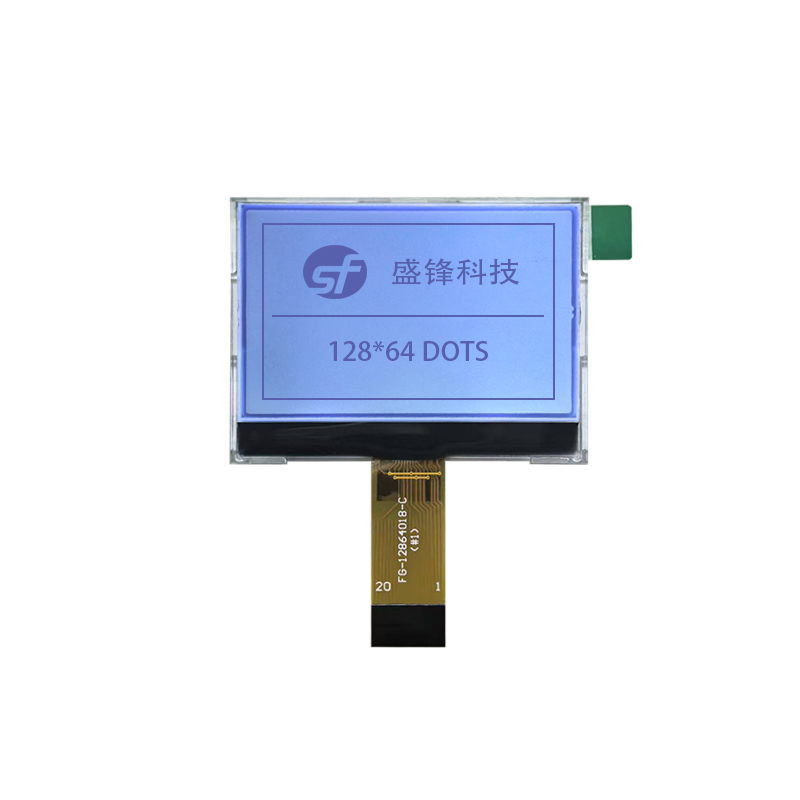

This is a compact 128*64 graphic LCD module, featuring an active area (VA size) of 40.93×24.93mm and an overall dimension of 48.20×32.20×2.10mm. This 12864 COG module is equipped with the ST7565 driver IC and comes with a 20PIN FPC interface, supporting both SPI/Parallel dual-interface chip selection for flexible and convenient integration. Additionally, it is designed with a unique backlight structure: full surrounding retaining walls firmly fix the LCD without loosening, while four positioning pillars on the backlight facilitate embedded mounting on the mainboard. With an overall backlight thickness of 4.45mm, the module offers exceptional structural stability and efficient heat dissipation, enabling reliable long-term operation and making it perfectly suited for industrial applications requiring prolonged use in harsh environments.

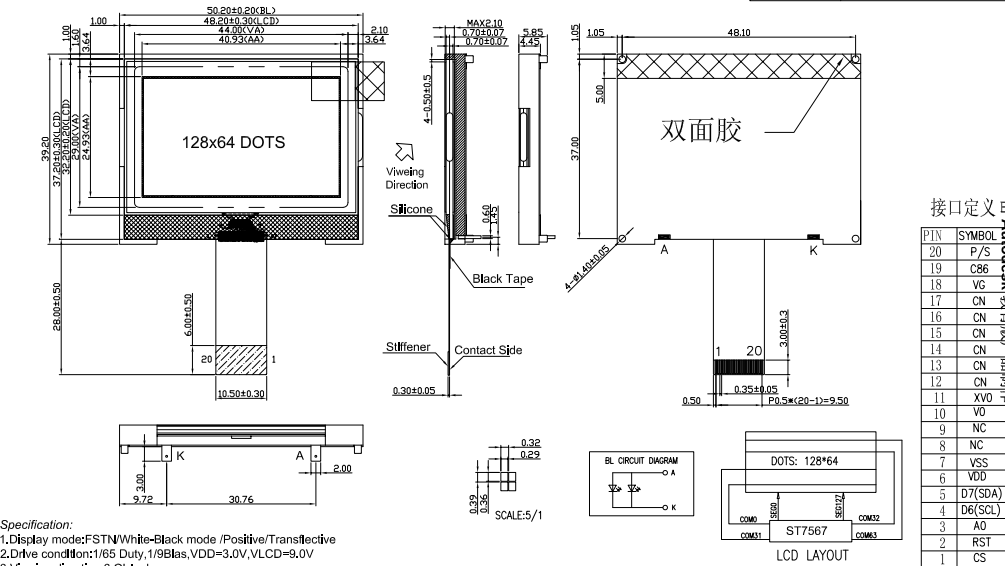

 Drawing:

Features:

• Classic Resolution:  The 128×64 resolution, one of the most versatile in monochrome dot matrix modules, supports clear display of text and icons, meeting diverse industrial visualization needs.
• Compact Size:  With 40.93×24.93mm active area and 48.20×32.20×2.10mm slim profile, the 12864 module fits seamlessly into industrial devices with limited installation space.
• Backlight Structure:  Surrounding retaining walls (for LCD fixation) and four positioning pillars (for embedded mounting) ensure structural stability; the 4.45mm-thick backlight optimizes heat dissipation, balancing reliability and performance.
• Dual-Interface Flexibility: Supporting SPI/Parallel dual-interface chip selection via a 20PIN FPC design, it allows free adaptation to different industrial master control schemes, simplifying integration and reducing adaptation costs.

Application:

Tailored to the core demands of industrial applications—"prolonged operation and complex environments"—this 12864 module undergoes comprehensive upgrades in material selection and structural design. Its tight assembly and efficient heat dissipation enable stable performance in harsh conditions and long working hours, making it ideal for:

• Industrial Automation:  PLC control panels, inverter operation screens, automated production line terminals.
• Instrumentation:  Portable detectors, data loggers, multimeter displays.

For more details about 12864 graphic LCD module or to discuss your customization needs, please feel free to contact us. We look forward to cooperating with you to create high-quality display solutions tailored to your requirements!
